Build up Kit of Parts for LH Front Push Button Door

This the kit of parts you need to build up a LH push button front door for all push button doors 1983-2016 (both pre 2006 doors and post 2006 Puma doors)

You will also need the door card and male door card clips.

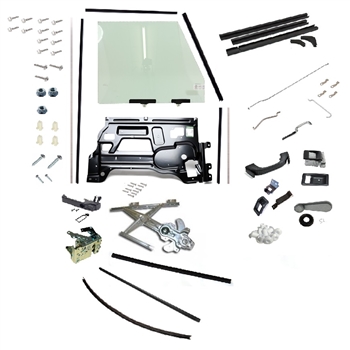

Comes with all the items in the photos, main items being the glass, inner panel and window mechanism alongside all the other parts needed to comeplte your door. Please note no other parts other than whats in the photo comes with the kit. However this is enough parts to build the door and is what we use to assemble complete doors.

Comes with the plastic trim parts you fit after fitting the door card such as window winder and bezel, interior grab handle and the pull handle surround and the interior button lock bezel. So is just the door card and male door card clips you need to fit.

The kit comes with the option of the small diameter lock push button door handle (for Defender 1983-2002) and also the option of the large diameter lock push button door handle. (for Defender 1983-2002). Or with the option of a blanked off push button door handle (normally found on central locking models)
If you do not know which you have just measure the lock diameter. The smaller type is 16mm in diamater, the larger lock 20mm

You get the items that are in the photo and comes with all the bits to have fully working doors

This kit is ideal when buying in conjunction with one of our new doors, saving having to swap all your old door bits over. This is an alternative to buying the doors with all the parts already fitted which we have in our other items

These kits are are designed to be a direct replacement for all 2002 onwards spec doors as the inner panels on pre 2002 models are slightly different. All of our new push button doors are of the 2002 onwards spec so if you and buying this kit in conjuction with one of our new doors this is all a direct swap over.

If you are fitting these to a 1983-2002 spec push button door, the way the inner panel attaches is slight different. On the hinge side of the door the old type of inner panel is held on with brackets which are attach to the door. The later type of inner panel just bolts directly the door door frame. So you need to remove the old brackets on the door and add rivnuts into the door frame so the new inner panel can be bolted into place. This is a fairly easy job for someone.
