Galvanised Swingaway Spare Wheel Carrier

British Made (By us here at LDAP )

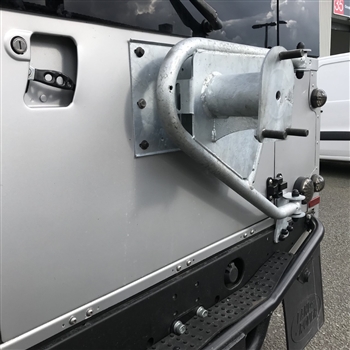

Hot Dipped Galvanised Swing away Spare Wheel Carrier

To fit all Defender models 1983-2016 Will fit side opening half rear door LR516G (will not fit drop down tailgates)

Take the stress off your door and hinges by fitting this heavy duty swing-away spare wheel carrier that puts the weight onto your chassis instead.

Designed & Tested in house at SP, these are strong, reliable & will fit your Defender. Being hot dip galvanised these will not rust out & will stand the test of time.

This swings with the door as you open the door. Unlike others where you need to swing the wheel carrier and then the door separately

They will fit all Defender models from 1983-2016. This is made from heavy gauge steel tube with a quality second to none.

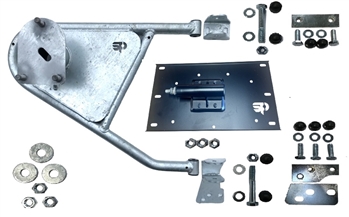

The main plate, wheel mounting plate and hinges are all made from heavy duty 5mm Steel.

The backing plate, which the piston mounts to is zinc plated and them powdercoated black as in the photo. This is to accommodate the new and improved piston mechanism.

To ensure this part lasts for life, self lubricating nylon bushes are used within the hinge parts, not only making sure its swings with the door smoothly but to also make it last. Removing the problem of the unit rattling on the back door, nylon bushes with a steel sliding piston is used which is extremely tough, doesn’t rattle and again has self lubricating properties. We have found this to be the most effective and reliable method of allowing the little bit of movement required for the carrier to slide when the door is opened and also to damp it when it is in the closed position.

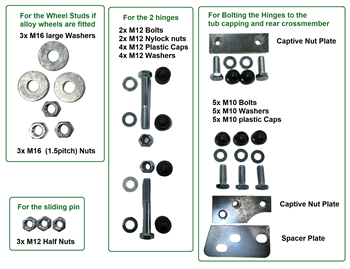

The full fitting kit is supplied included every nut and bolt you need to fit, full instructions are also included to aid a speedy fit.

Please remember Hot Dipped Galvanised finish is an industrial process and it is normal to come with lumps bumps, rough parts etc.
Its primary function is for longevity as these wlll last a lifetime.
So doesnt look as pretty as a powdercoated finish but will last so much longer!
